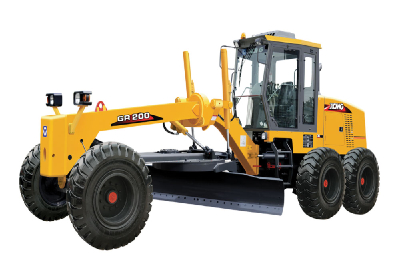

XCMG Motor Grader GR200

XCMG Motor Grader GR200

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-12-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  8015*2380*3050mm
  • Place of Origin:  CHINA
  • Brand Name:  XCMG
  • Model Number:  GR180
  • Weight: 11000.000 kg



XCMG Motor Grader GR200


Basic specification

Engine model

D6114 ZG14B

Rated power/speed

  147kW/2200rpm

Dimension(LxWxH)

8932×2625×3470mm

Operating weight(Standard)

16000kg

Performance specification

Travelling speed ,forward

5 、 8 、 11 、 19 、 23 、 38 km/h

Travelling speed ,reverse

5 、 11 、 23 km/h

Tractive force(f=0.75)

82KN

Max. gradeability

20%

Tire inflation pressure

260 kPa

Working hydraulic pressure

16 MPa

Transmission pressure

1.3 ~ 1.8MPa

Operating specification

Max. steering angle of front wheels

±50°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box

15

Frame articulation angle

±27°

Min. turning radius using articulation

7.3m

Biade

Maximum lift above ground

450mm

Maximum depth of cutting

500mm

Maximum blade position angle

90°

Blade cutting angle

28°—70°

Circle reversing rotation

360°

Moldboard width X height

4270×610mm


  • Size:  8015*2380*3050mm
  • Place of Origin:  CHINA
  • Brand Name:  XCMG
  • Model Number:  GR180
  • Weight: 11000.000 kg

XCMG Motor Grader  GR215



Basic specification

Engine model

6CTAA8.3 6CTA8.3

Rated power/speed

  153kW/2200rpm  160kW/2200rpm

Dimension(LxWxH)

8970×2625×3470mm

Operating weight(Standard)

16500kg

Performance specification

Travelling speed ,forward

5 、 8 、 11 、 19 、 23 、 38 km/h

Travelling speed ,reverse

5 、 11 、 23 km/h

Tractive force(f=0.75)

82KN

Max. gradeability

20%

Tire inflation pressure

260 kPa

Working hydraulic pressure

16 MPa

Transmission pressure

1.3 ~ 1.8MPa

Operating specification

Max. steering angle of front wheels

±50°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box

15

Frame articulation angle

±27°

Min. turning radius using articulation

7.3m

Biade

Maximum lift above ground

450mm

Maximum depth of cutting

500mm

Maximum blade position angle

90°

Blade cutting angle

28°—70°

Circle reversing rotation

360°

Moldboard width X height

4270×610mm
