- Size: 8015*2380*3050mm
- Place of Origin: CHINA
- Brand Name: XCMG
- Model Number: GR135
- Weight: 11000.000 kg

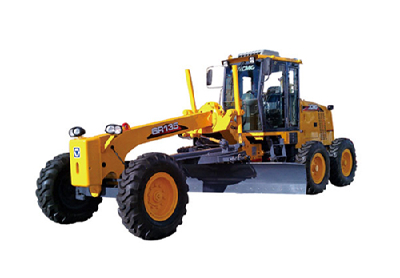

XCMG Motor Grader GR135
The grader is an important class of earth-moving machine used for shaping and leveling operations, which is widely used in highways, airports, construction sites and other large-area leveling operations. Graders can conduct ground leveling and treching, slope-scraping, bulldozing, snow clearance, loosening, compaction, materials laying, mixing, loading, and land reclamation operations for large-scale areas like highways and farmlands, which are enssential for defense engineering, mine construction, road construction, water conservancy construction, farmland improvement and other construction applications.
XCMG's GR series of graders are equipped with industry-leading technologies and their domestic market share and export volume have ranked no.1 in the industry for 5 consecutive years
- Size: 8015*2380*3050mm
- Place of Origin: CHINA
- Brand Name: XCMG
- Model Number: GR135
- Weight: 11000.000 kg
XCMG Motor Grader GR135
Basic specification | |
|---|---|
| Engine model | 6BT5.9 |
| Rated power/speed | 100/2200kw/rpm |
| Dimension(LxWxH) | 8015×2380×3050mm |
| Operating weight(Standard) | 11000kg |
Performance specification | |
| Travelling speed ,forward | 5,8,13,20,30,42km/h |
| Travelling speed ,reverse | 5,13,30km/h |
| Tractive force(f=0.75) | 61.3KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 300kPa |
| Working hydraulic pressure | 16MPa |
| Transmission pressure | 1.3～1.8MPa |
Operating specification | |
| Max. steering angle of front wheels | ±49° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 16 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 6.6m |
Biade | |
| Maximum lift above ground | 410mm |
| Maximum depth of cutting | 535mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3710×610mm |
