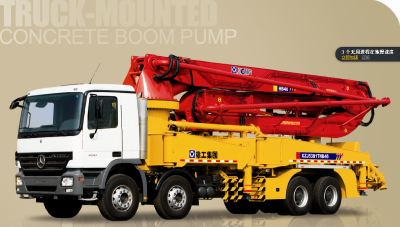

XCMG HB56A Truck-Mounted Concrete Boom Pump
Main Technical Parameters
1). Technical data for traveling state
I tems | Unit | Parameter & Dimension | ||
Outline dimension ( L × W × H ) | mm | 13 8 00 × 2500 × 4000 | ||
Fuel type | Diesel | |||
Emission standard | China Ⅲ | |||
Displacement / Rated output power | l/kW | 14256 / 287 | ||
Steering type | Steering wheel | |||
No. of axle | 4 | |||
W heel base | mm | 1850 4605 1310 | ||
No. of leaf spring (front/front/rear) | 8 / 7 / 9 | |||
T ire size | 295 / 80R22.5 | |||
T rack (front/rear) | mm | 2065 / 1850 | ||
No. of tire (without spare tire) | 12 | |||
Total vehicle mass | Total mass | kg | 40870 | |
Front axle | kg | 14870 | ||
Middle / Rear axle | kg | 26000 | ||
Max. total mass | Total mass | kg | 41000 | |
Front axle | kg | 15000 | ||
Middle / Rear axle | kg | 26000 | ||
Crew in driver ’ s cab | 2 | |||
A pproach / D eparture angle | 23° / 10° | |||
Front suspension / Rear suspension | mm | 1400/3390 | ||
Front extension / Rear extension | mm | 0/1245 | ||
M ax. travel speed | km/h | 89 | ||
M in. ground clearance | mm | 240 | ||
M ax. grade-ability | 34 % | |||
F uel consumption of 100km | l/100km | ≥ 40 | ||
Chassis | Model | CYH51Y 8 × 4 | ||
Type | Category II | |||
Manufacturer | Isuzu, Japan | |||
E ngine | Model | 6WF1D | ||
Manufacturer | Isuzu, Japan | |||
2). Technical data for pumping operation
C ategory | I tems | Unit | Parameter | |
Pumping system | T heoretical output (high/low pressure) | m 3 /h | 9 0 / 1 50 | |
Theoretical delivery (high/low pressure) | MPa | 13 / 8 | ||
Theoretical cycle (high/low pressure) | cycle/min | 13 / 2 2 | ||
Delivery cylinder ID × S troke | mm | Φ 2 60 × 2 3 00 | ||
M ax. aggregate size | mm | 40 | ||
Concrete filling height | mm | 1 57 0 | ||
C oncrete slump | cm | 12 ～ 23 | ||
Hopper capacity | m 3 | 0.8 | ||
P lacing boom | M ax. reach height | m | 5 5 . 6 | |
M ax. reach depth | m | 39.2 | ||
Slewing radius | m | 50 . 6 | ||
S lewing angle | ° | ±270 | ||
U nfolding angle | 1st section | ° | 90 | |
2nd section | ° | 180 | ||
3rd section | ° | 180 | ||
4th section | ° | 240 | ||
5 th section | ° | 240 | ||
6 th section | ° | 90 | ||
Stabilizer span | Stabilizer longitudinal span | mm | 10680 | |
F ront stabilizer lateral span | mm | 9300 | ||
Rear stabilizer lateral span | mm | 11670 | ||
Others | T ransfer tube | S -Valve | ||
L ubrication | Manual lubrication | |||
C ontrol type | M anual/Remote control | |||
W ater tank capacity | L | 70 0 | ||
W ater pump ma x . pressure | MPa | 2 | ||
