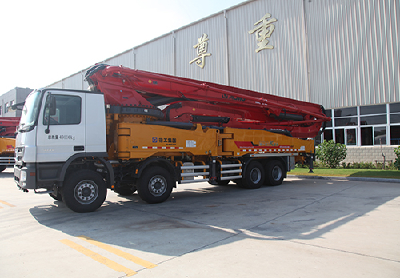

XCMG HB52A-I Truck-Mounted Concrete Boom Pump
Main Technical Parameters
1). Technical data for traveling state
I tems | Unit | Parameter & Dimension | ||
Outline dimension ( L × W × H ) | mm | 13 6 00 × 2500 × 4000 | ||
Fuel type |
| Diesel | ||
Emission standard |
| China Ⅲ | ||
Displacement / Rated output power | l/kW | 14256 / 287 | ||
Steering type |
| Steering wheel | ||
No. of axle |
| 4 | ||
W heel base | mm | 1850+4605+1310 | ||
No. of leaf spring (front/front/rear) |
| 8 / 7 / 9 | ||
T ire size |
| 295 / 80R22.5 | ||
T rack (front/rear) | mm | 2065 / 1850 | ||
No. of tire (without spare tire) |
| 12 | ||
Total vehicle mass | Total mass | kg | 40870 | |
Front axle | kg | 14870 | ||
Middle / Rear axle | kg | 26000 | ||
Max. total mass | Total mass | kg | 41000 | |
Front axle | kg | 15000 | ||
Middle / Rear axle | kg | 26000 | ||
Crew in driver ’ s cab |
| 2 | ||
A pproach / D eparture angle |
| 23° / 10° | ||
Front suspension / Rear suspension | mm | 1400/3390 | ||
Front extension / Rear extension | mm | 0/1245 | ||
M ax. travel speed | km/h | 89 | ||
M in. ground clearance | mm | 240 | ||
M ax. grade-ability |
| 34 % | ||
F uel consumption of 100km | l/100km | ≥ 40 | ||
Chassis | Model |
| CYH51Y 8 × 4 | |
Type |
| Category II | ||
Manufacturer |
| Isuzu, Japan | ||
E ngine | Model |
| 6WF1D | |
Manufacturer |
| Isuzu, Japan | ||
2). Technical data for pumping operation
Item | Parameter | |
Theoretical output (high/low pressure) m 3 /h | 90/150 | |
Max. placing boom height m | 52.0 | |
Reach depth m | 36.4 | |
Delivery pressure (high/low pressure) Mpa | 13/8 | |
Maximum aggregate diameter mm | 40 | |
Concrete cylinder diameter/stroke mm | 260/2200 | |
Filling height mm | 1570 | |
Hopper capacity m 3 | 0.8 | |
Concrete slump range cm | 12~23 | |
Turning radius of the placing boom m | 47.6 | |
Slewing angle of the placing boom | ±270° | |
1 st section unfolding angle | 90° | |
2 nd section unfolding angle | 180 ° | |
3 rd section unfolding angle | 180° | |
4 th section unfolding angle | 240° | |
5 th section unfolding angle | 240° | |
6 th section unfolding angle | 9 0° | |
Stabilizer span | Longitudinal span mm | 10 38 0 |
Front stabilizer transverse span mm | 9300 | |
Rear stabilizer transverse span mm | 1 1180 | |
Distance of stabilizer to swing center | Left front transverse mm | 4650 |
Left rear transverse mm | 5 59 0 | |
Left front longitudinal mm | 3448 | |
Transfer tube | S valve | |
Swing times of transfer tube per minute (high/low pressure) | 11-13/20-22 | |
