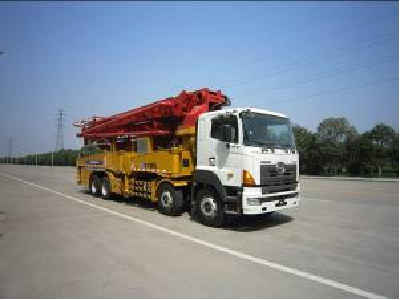

XCMG HB48B Truck-Mounted Concrete Boom Pump

XCMG HB48B Truck-Mounted Concrete Boom Pump

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 per Month
  • Port: CHINA PORT
  • Payment Terms: T/T,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-12-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  12725×2500×3995
  • Place of Origin:  CHINA
  • Brand Name:
  • Model Number:  HB48B
  • Weight: 40000.000 kg

XCMG HB48B Truck-Mounted Concrete Boom Pump


Main Technical Specifications

1). Technical data for travel

Category

Items

Unit

Parameter

Chassis

Model

FY1EWV

Manufacturer

Hino, Japan

Max. travel speed

km/h

85

Max. grade-ability

%

39.9

Min. turning diam.

m

24.4

Braking distance

m

≤10

Wheel base

mm

1850+4605+1310

Track (front/rear)

mm

2050/1855

Approach/Departure angle

°

18/10

Min. ground clearance

mm

240

Tire size

295/80R22.5

Engine

Model

E13CTR

Output power

kw/(r/min)

331/1800

Max. torque

N·m/(r/min)

1912/1100

Displacement

L

12.913

Engine emission

China

Others

Outline dimension

L×W×H

12725×2500×3995

Total vehicle mass

kg

40000

Fuel tank capacity

L

400

Fuel consumption of 100km

L/100km

40



2). Technical data for pumping operation

Category

Items

Unit

Parameter

Pumping system

Theoretical output (high/low pressure)

m 3 /h

90/150

Theoretical delivery (high/low pressure)

MPa

13/8

Theoretical cycle (high/low pressure)

cycle/min

11-13/20-22

Delivery cylinder ID×Stroke

mm

φ260×2200

Max. aggregate size

mm

40

Concrete filling height

mm

1540

Concrete slump

cm

12 23

High/Low pressure switch-over

Automatic

Placing boom

Max. reach height

m

48.1

Max. reach depth

m

33.75

Slewing radius

m

43.75

Slewing angle

°

370

1st section unfolding angle

°

90

2nd section unfolding angle

°

180

3rd section unfolding angle

°

180

4th section unfolding angle

°

250

5th section unfolding angle

°

250

6th section unfolding angle

°

90

Stabilizer span

Stabilizer longitudinal span

mm

10500

Front stabilizer lateral span

mm

10450

Rear stabilizer lateral span

mm

10300

Others

Transfer tube

S-Valve

Lubrication

Automatic lubrication

Control type

Manual/Remote control

Water tank capacity

L

600

Water pump max. pressure

MPa

2



If you have any demand or need more details, please feel free to contact MS JUDY

Mobile:+86-13361000706 (WhatsApp,viber,line,wechat,QQ)

FAX: 86-531-81958187   Skype: judychenyy82
