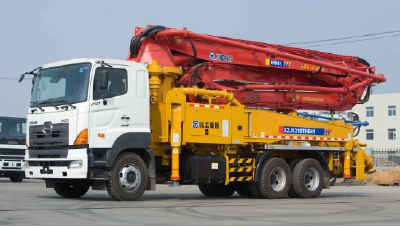

Category

Items

Unit

Parameter

Pumping system

Theoretical output

m 3 /h

140 / 70

Rated working pressure

MPa

6.38 / 11.8

Working cycles

cycle/min.

27 / 15

Hoper capacity

L

600

Concrete filling height

mm

1530

Hydraulic system type

Open type

Distribution valve type

S-valve

Delivery cylinder Bore×Stroke

mm

φ230/2000

Hydraulic oil cooling

Fan cooling

Concrete slump

mm

120~230

Max. aggregate size

mm

40

Spectacle plate service life

m 3

60000

Cutting ring service life

m 3

40000

Pump pipeline service life

m 3

30000

(end hose 10000~20000)

High/low pressure switchover

Automatic

Placing boom

Max. reach height

m

40.5

Max. reach radius

m

36.3

Max. reach depth

m

27.7

Slewing angle

°

±270°

Number of boom section

5

Boom length

mm

8350/7050/6700/7000/7200

Boom unfolding angle

°

90°/180°/180°/240°/250°

Delivery pipe diameter

mm

125

Delivery pipe wall thickness

mm

superstructure 4.5, chassis 7.5

End hose length

mm

3000

Chassis

Chassis model

FS1ERV

Wheelbase

mm

4640+1310

Track (front/rear)

mm

2050/1855

Tire

mm

295/80R22.5

Engine model and manufacturer

HINO E13C TL /Hino

Engine max. output power

kW/(r/min.)

302/1800

Engine max. torque

N.m/(r/min.)

1618/1100

Engine displacement

mL

12913

Fuel tank capacity

L

400

Emission standard

Euro  Ⅲ

Total vehicle mass

kg

30500

Total vehicle dimension (L×W×H)

mm

11100×2500×3990

Outrigger

Front X telescoping, rear swinging

Others

Lubrication

Automatic lubrication

Hydraulic oil tank capacity

L

750

Control type

Manual + Remote control

Water pump max. pressure

MPa

2

Water tank capacity

L

500

Concrete pipe cleaning

Water cleaning / Dry cleaning
