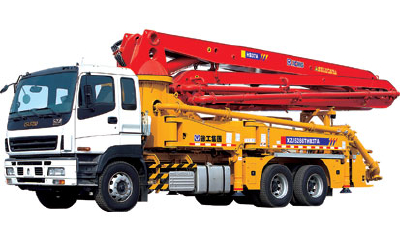

C ategory

I tems

Unit

Parameter

Pumping system

T heoretical output

m 3 /h

1 38  /   90

Rated working pressure

MPa

8.7/13

Pumping cycles

cycle/min.

27/18

Hoper capacity

L

600

Concrete  filling height

mm

1 45 0

Hydraulic system type

C losed type

Distribution valve type

S-pipe

Oil cylinder ID × S troke

mm

Φ  14 0 / 2 1 00

Delivery cylinder ID × S troke

mm

Φ  23 0 / 2 1 00

Hydraulic oil cooling

Fan cooling

Concrete slump

cm

12~23

M ax. aggregate  size

mm

40

Spectacle plate service life

m 3

60000

Cutting ring service life

m 3

40000

Pump pipeline service life

m 3

30000

(end boom tube 10000~20000

P lacing boom

M ax. reach height

m

3 7

M ax. reach  radius

m

32.6

M ax. reach depth

m

24.2

S lewing angle

370°

Number of boom section

4

Boom unfolding  angle

90 °  /  180°  / 180 °  / 230 °

Delivery pipe diameter

mm

1 25

Delivery pipe wall thickness

mm

Upper 4.5,  Lower 7

E nd hose length

mm

3000

Chassis

Chassis model

CYZ51Q

Wheelbase

mm

4595/1310

Track (front/rear)

mm

2065/1850

Tire

mm

295/80R22.5

Engine model and manufacturer

6WF1A/Isuzu, Japan

Engine max. output power

kW/(r/min.)

265/1800

Engine max. torque

N.m/(r/min.)

1422/1100

Engine  max. displacement

mL

14256

Fuel tank capacity

L

400

E mission standard

Euro   Ⅲ

T otal  vehicle  mass

kg

28400

Braking distance

At i nitial  speed  30km/h,≤10m

Total vehicle dimension ( L × W × H )

mm

11990/2500/3900

O utrigger

Front/rear dual swing

Others

L ubrication

Automatic lubrication

Hydraulic oil tank capacity

780

C ontrol type

M anual+Remote control

W ater pump  ma x .  pressure

MPa

2

W ater tank capacity

L

600

Concrete pipe cleaning

W ater cleaning/dry cleaning
