XCMG Concrete mixer of 15m3 G15SX

XCMG Concrete mixer of 15m3 G15SX

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 per Month
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-12-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  11910×2500×3995 MM
  • Place of Origin:  CHINA
  • Brand Name:  XCMG
  • Model Number:  G15SX
  • Weight: 17000.000 kg

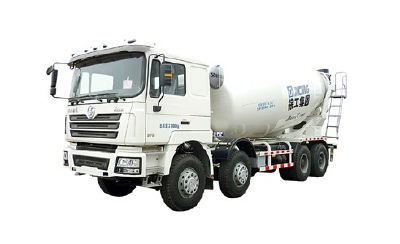

XCMG Concrete mixer of 15m3 G15SX

Geometric volume: 23.7m³
Agitation volume: 15m³
Maximum diameter of the tank: 2432mm


Type

Model

Unit

G15SX

Performance of mixing drum

Geometric volume

23.5

Mixing volume

15

Maximum diameter of drum body

mm

2432

Length of mixing drum

mm

7009

Angle of inclination

 °

10

Rotating speed

r/min

0~14

Charge speed

m³/min

≥3

Discharge speed

m³/min

≥2

Residue ratio of discharge

%

<0.7

Range of slump

cm

5~21

Hydraulic system

Oil pump

international brand

Motor

international brand

Reduction gears

international brand

Hydraulic circuit

Closed type

Water supply

water tank capacity

L

450

Way of water supply

Pneumatic

Complete machine

Brand of chassis

XCMG NAC

Chassis model

SX5315GJBJT346

Type of driving

Left-hand drive

Curb weight

kg

17000

maximum gross weight

kg

31000

Type of drive

8×4

Wheel base

mm

1800+3375+1400

Tyre

12.00R20

Means of power takeoff

Power takeoff by flywheel

Notice model

XZJ5310GJB2

External dimensions

(length×width×height)mm

11910×2500×3995

Engine

Model

WP10.375/WP10.380E32

Rated power

Kw/r/min

276

Displacement

L

9.726

Emission standard

GB III





If you need more details, please feel free to contact MS JUDY

Mobile:+86-13361000706 (WhatsApp,viber,line,wechat,QQ)

FAX: 86-531-81958187   Skype: judychenyy82



  • Size:  11910×2500×3995 MM
  • Place of Origin:  CHINA
  • Brand Name:  XCMG
  • Model Number:  G15SX
  • Weight: 17000.000 kg
