- Size: 9400*3500*3770MM
- Place of Origin: CHINA
- Brand Name: XCMG
- Model Number: LW900F
- Weight: 29500.000 kg

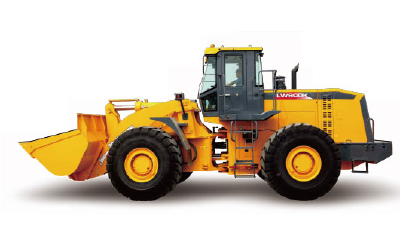

XCMG 9T Wheel loader
Items | Unit | Parameters | ||
Rated bucket capacity | m 3 | 5 | ||
Rated load | kg | 9000 | ||
Operating weight | kg | 29500 | ||
Max. traction | kN | 245 | ||
Max. breakout force | kN | 260 | ||
Boom lifting time | s | 7 | ||
Total time of 3 devices | s | 12.5 | ||
Tyre |
| 29.5R25 | ||
Overall dimension | mm | 9400×3500×3770 | ||
Engine model | Cummins QSM11-C335 | |||
Type | Water cooling, 4 stroke | |||
Suction | Turbo charging, air intercooler | |||
Cylinder amount | 6 | |||
Cylinder bore |
| |||
Piston displacement | 10.8L | |||
Speed controller | Electronic, whole process speed control | |||
Power | 250kW(335HP) | |||
Rated revs | 2100rpm | |||
|
| |||
Fuel system | Direct injection | |||
Max. torque | 1647nm@1400rmp | |||
Lubrication system | Gear pump forced lubrication | |||
Filter | Full flow type | |||
Air filter | (double element, dust discharge and dust indicator) dry type | |||
Hydraulic torque converter |
| |||
Type | Single stage, 2 phase, 3 elements | |||
Transmission | ||||
Type | Planetary gear | |||
Travel speed km/h |
| |||
Drive system | 4WD | |||
Front wheel | Fixed, full floating type | |||
Rear wheel | Central pin bearing, full floating type, 26° swing | |||
Reduction gear | Spiral bevel gear | |||
Differential gear | Common gear | |||
Final drive | Planetary gear, first stage reduction | |||
Service brake | Full hydraulic wet type disc brake (4 wheels) | |||
Parking brake | Wet type disc brake | |||
Emergency brake | Also used as parking brake | |||
Type | Articulation, full hydraulic power steering | |||
Steering angle | bidirectional 40° | |||
Min. turning radius(by outer wheel center) | 6200mm | |||
Steering system | ||||
Hydraulic pump | Gear pump | |||
Max. flow | 168ltr/min | |||
Pressure of safety valve | 19MPa | |||
Steering cylinder | ||||
Type | Double acting piston type | |||
|
| |||
Cylinder amount | 2 | |||
Cylinder bore × stroke | 115mm×445mm | |||
Loading control | ||||
Hydraulic pump | Gear pump | |||
Rated flow | 294 168I/min | |||
Pressure of safety valve | 20MPa | |||
Operating cylinder | ||||
Type | Double acting piston | |||
Cylinder amt. - cylinder bore × stroke: |
| |||
Boom | 2-180mm×880mm | |||
Bucket | 1-220mm×590mm | |||
Control valve | Single handle | |||
Control device | ||||
Boom | Lifting, retaining, descending, floating | |||
Bucket | Back inclination, retaining, dumping | |||
Cylinder operating time | ||||
Lifting | 7 s | |||
Dump | 1.2 s | |||
Descending (empty bucket) | 4.3 s | |||
Cooling system | 65L | |||
Fuel tank | 420L | |||
Engine | 33L | |||
Hydraulic system | 340L | |||
Drive axle (each) | 66L | |||
Transmission | 64L | |||
