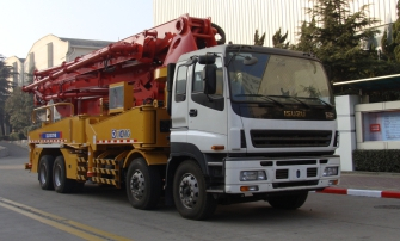

XCMG HB46A Truck-Mounted Concrete Boom Pump
Main Technical Specifications
1). Technical data for travel
Category | Items | Unit | Parameter |
Chassis | Model |
| CYH51Y |
Manufacturer |
| Isuzu, Japan | |
Max. travel speed | km/h | 89 | |
Max. grade-ability | % | 34 | |
Min. turning dia. | m | 23.8 | |
Braking distance | m | ≤10 | |
Wheel base | mm | 1850+4605+1310 | |
Track (front/rear) | mm | 2065/1850 | |
Approach/Departure angle | ° | 23.5/10 | |
Min. ground clearance | mm | 240 | |
Tire size |
| 295/80R22.5 | |
Engine | Model |
| 6WF1D |
Output power | kw/(r/min) | 287/1800 | |
Max. torque | N·m/(r/min) | 1863/1100 | |
Displacement | L | 14.256 | |
Engine emission |
| China Ⅲ | |
Others | Outline dimension | L×W×H | 12665×2500×3990 |
Total vehicle mass | kg | 38400 | |
Fuel tank capacity | L | 400 | |
Fuel consumption of 100km | L/100km | 40 |
2). Technical data for pumping operation
Category | Items | Unit | Parameter | |
Pumping system | Theoretical output (high/low pressure) | m 3 /h | 90/150 | |
Theoretical delivery (high/low pressure) | MPa | 13/8 | ||
Theoretical cycle (high/low pressure) | cycle/min | 13/22 | ||
Delivery cylinder ID×Stroke | mm | Φ 260×2200 | ||
Max. aggregate size | mm | 40 | ||
Concrete filling height | mm | 1540 | ||
Concrete slump | cm | 12～ 23 | ||
Placing boom | Max. reach height | m | 46 | |
Max. reach depth | m | 31.37 | ||
Slewing radius | m | 41.8 | ||
Slewing angle | ° | 370 | ||
1st section unfolding angle | ° | 90 | ||
2nd section unfolding angle | ° | 180 | ||
3rd section unfolding angle | ° | 180 | ||
4th section unfolding angle | ° | 250 | ||
5th section unfolding angle | ° | 250 | ||
| Stabilizer longitudinal span | mm | 9000 | |
Stabilizer span | Stabilizer l ongitudinal span | mm | 9500 | |
Front stabilizer lateral span | mm | 10320 | ||
Rear stabilizer lateral span | mm | 9660 | ||
Others | Transfer tube |
| S-Valve | |
Lubrication |
| Automatic lubrication | ||
Control type |
| Manual/Remote control | ||
Water tank capacity | L | 600 | ||
Water pump max. pressure | MPa | 2 | ||
